Stäubli WFT wireless charging agv - power system for robots

Wireless charging for AGV
(automated guided vehicles)

Wireless charging for AGV (Automated guided vehicle) is the technology of the future when it comes to power vehicles. In addition to the development of smart algorithms, sophisticated sensor technology and decentralized intelligence in AGVs, right up to swarming behavior, are inductive chargers (wireless charging) the key to making solutions ever more powerful and enabling fully automated system processes.

Whether platform trucks, narrow-aisle mobile robots or driverless forklifts – automated vehicles are scalable, flexible and optimize the the applications and weak points in logistics and production. The charger system thus enable an efficient degree of automation of transport and warehouse operations without contact.

Wireless charging of AGV enables 24/7 and “in-process charging”

With our inductive battery charging solutions, we enable 24/7 operation of automated guided vehicles and transport vehicles.

Our innovative “in-process charging” solutions allows the vehicles to be supplied with power efficiently and fully automatically – contactless and without the AGV having to interrupt its transport for power breaks.

SHERPA agv wireless charging wiferion - induktives laden fts

Selected customers and partners with integrated inductive charging systems in AGVs

  • Wireless charging for AGV (automated guided vehicle)
  • Wireless charging for AGV (automated guided vehicle)
  • Wireless charging for AGV (automated guided vehicle)
  • Wireless charging for AGV (automated guided vehicle)
  • Wireless charging for AGV (automated guided vehicle)
  • Wireless charging for AGV (automated guided vehicle)
  • Wireless charging for AGV (automated guided vehicle)
  • Wireless charging for AGV (automated guided vehicle)
  • Wireless charging for AGV (automated guided vehicle)
induktives laden ftf in der produktion - wireless charging agv in the production

Industrial wireless charging enables continuous operation of AGVs

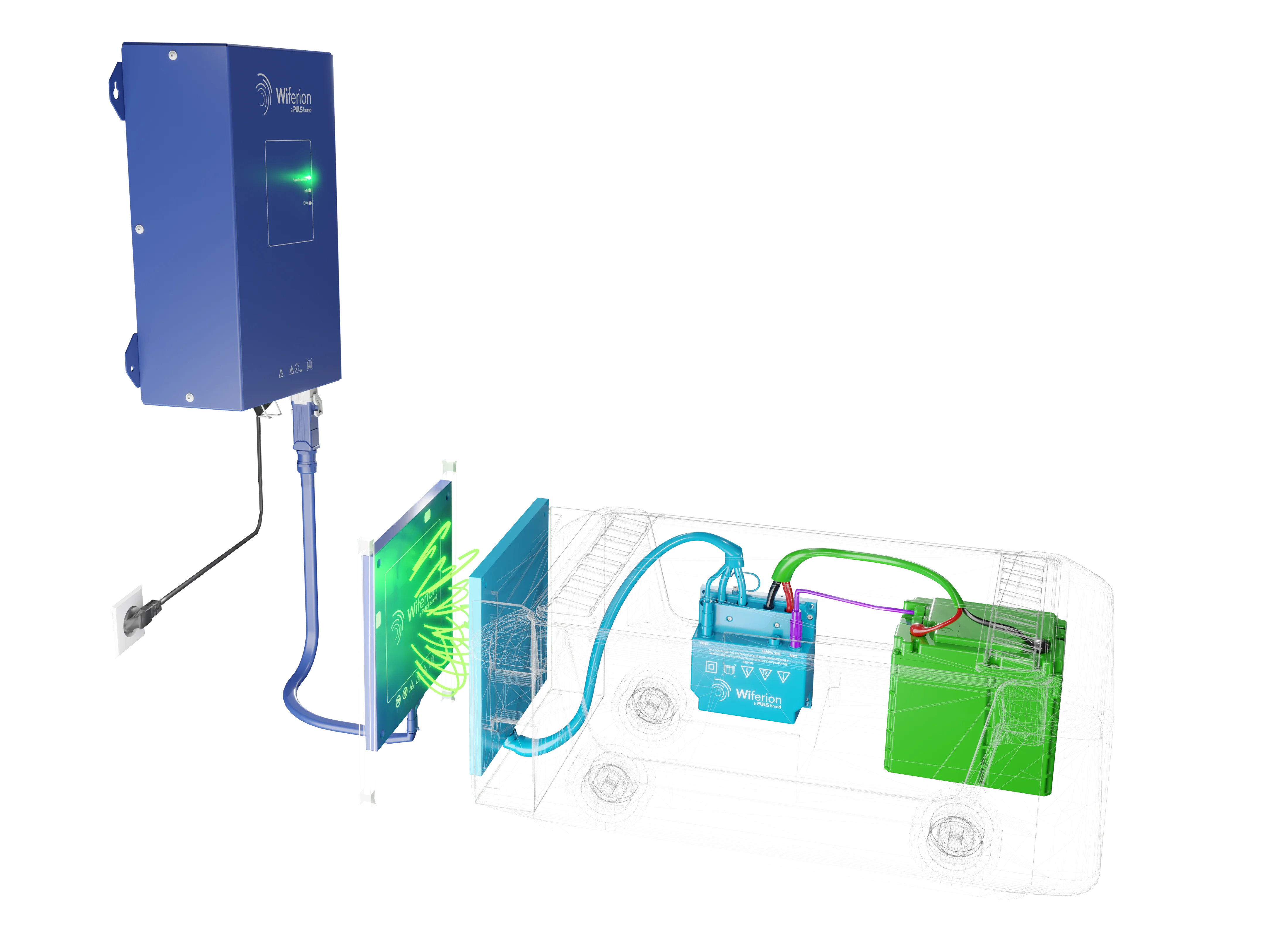

Our inductive power systems of the etaLINK series require neither contact, plug nor sliding connections of the charger. The patented wireless charging technology consists of a wallbox and a charging pad that can be installed at suitable locations in the logistics and production environment.

The powerful electronics system of the etaLINK products with receiver coil, mobile charging unit and energy storage are extremely compact and are installed in the vehicle or robot.

If, for example, an AGV drives to the charging point, the inductive charging process starts fully automatically in less than one second. Thanks to our high efficiency of 93 %, we can use even the shortest stops for efficient energy supply. The charging point can be approached omnidirectionally without contact by the AGV or robot.

Intermediate power transfer enables smaller batteries in AGVs

The intermediate charging enable us to keep the energy level of the driverless transport systems at a constant level. This makes it possible that the logistic processes do not have to be interrupted to charge the lithium ion batteries. The driverless vehicles can thus complete their transport in continuous operation.

One charging system can serve all kind of battery technology and applications with 24 to 48 volts. The charging power and energy characteristic is freely programmable.

We guarantee optimized charging of lithium batteries and high process reliability by communicating with the vehicle components via an integrated CAN interface. This prevents the battery from having to be switched off due to an increased charging current and the resulting strong heat generation.

wireless charging siemens automotive testcenter agv
induktives laden fts in der produktion - wireless charging amr in the production

Reduced battery capacity in AGV possible

By using our wireless charging for AGV, the energy level of the vehicles remains constantly high due to the short stops with power transfer. As a result, a small capacity range of the batteries is required compared to conventional charging solutions with plug connections. The required capacity of the battery used is reduced by up to 30%. The batteries installed in the vehicle or robot can therefore be dimensioned much smaller and AGVs can be designed more compactly.

Maintenance-free contactless battery charging technology for autonomous vehicles

Our wireless charging station requires no mechanical contact and is therefore practically maintenance-free. Problems like oxidized plugs or broken cables are a thing of the past. This makes the use of driverless transport systems even more reliable.

vertical application wireless charging agv induktives laden agv vertikal laengliche spule
induktives laden ftf magazino - wireless charging agv mobile robot
Go-Live within a few days Fast implementation at the end customer Automated charging technology in the outdoor area
A go-live of the systems at the user’s site is therefore not delayed by the implementation of a charging infrastructure. In addition, the modular charger can be quickly adapted to changes in the workflow or new requirements in everyday production. The etaLINK system from Wiferion can be installed almost anywhere – on walls, on the floor, on driveways, at parking areas, loading and unloading stations and many more applications. The advantage: With conventional systems, integration into warehouse processes can often take weeks or even months. No complex infrastructure measures are required to implement automation with the wireless charging technology. Thanks to the protection classes IP 65 and 68 our etaLINK 12000 and etaLINK 3000 products are optimally protected against dust and water. Thus, automated charging processes of agv transport systems and mobile robot can be realized even in rough outdoor environments without contact.

The benefits of inductive charging at a glance

Weather resistance

Weather resistance

Encapsulated system with IP 65 certification

One 4 All

One 4 All

One system for all voltages and charging currents

Position tolerance

Position tolerance

40mm in every direction

<1 sec to start

<1 sec to start

Directly on full power

Omnidirectional charging

Omnidirectional charging

Charge in any direction

Data transmission integrated

Data transmission integrated

All relevant data on a glance

No wear

No wear

No tearing points

No cleaning needed

No cleaning needed

Encapsulated system

No sparks

No sparks

Charge without contact

No wear and tear

No wear and tear

No loose components

See it in action or interested in our wireless charging solutions? Get in touch!

Our Products

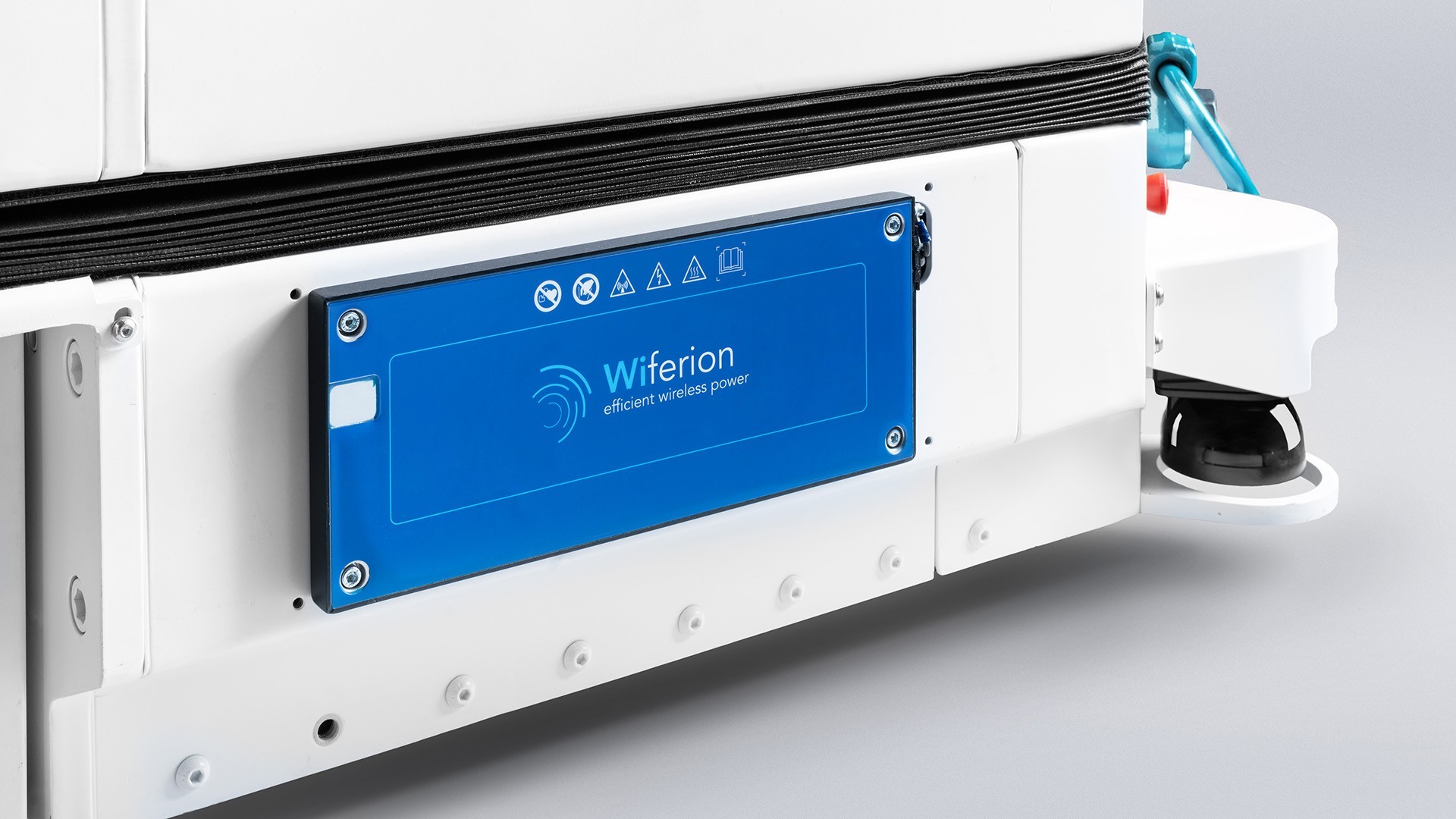

etaLINK 3000

The wireless 3kW battery charger

etaLINK 3000 - industrial wireless power - industrielles induktives laden - industrial wireless charging - ifoy winner - handling award winner
etaLINK 12000

Unleashed 12kW wireless power solution

LogiMAT 20202 - best product winner - etaLINK 12000 - wireless charging
etaSTORE

Your special batteries for wireless charging

Wiferion etaSTORE LFP - Battery - Batterie - Lithium Ion Battery - Industrial LiFEPo - Lithium Ionen Batterie für FTS, FFS, Flurförderzeuge und AGV
etaTRAY

Forklift retrofit products for wireless charging

etaTRAY - 48v batterie - wireless charging with retrofit tray - kabelloses laden mit trog - ffs, fts, routenzug - staplerbatterie - akku - batterietrog
