CW Charger Family — Product Launch

WIRELESS POWER. REDEFINED.

Redefining industrial wireless charging.

The CW Charger Family. Modular inductive charging for autonomous mobile robots. One platform — every power class.

Redefining industrial wireless charging

MAINTENANCE-FREE
INDUSTRIAL WIRELESS
CHARGING

The CW family sets new standards in charging mobile robots. The platform includes the CW1500.WALL, CW3300.WALL, and the CW6000.WALL concept — showing where the journey leads: maximum performance for tomorrow's demands.

BUILT FOR
AUTONOMOUS
SYSTEMS

More than a wallbox. A modular system designed for the infrastructure — not just the robot. One platform covers every power class, every application. Full backward compatibility with existing systems.

Technology & Benefits

WHY WIRELESS CHARGING

High Efficiency

Up to 93 % system efficiency for maximum energy transfer with minimal losses.

Industrial-Grade Reliability

IP54 protection, -25 °C to +40 °C operating range. Built for demanding environments.

Contactless Charging

Zero mechanical wear. No connectors, no maintenance, no downtime.

Zero Wear & Tear

Inductive technology eliminates physical contact points entirely.

Fully Automated

Autonomous charging process. Robots charge themselves without human intervention.

Scalable & Modular

CW family covers 1500 W to 6000 W. One platform, every power class.

Inductive Technology

ENERGY TRANSFER
WITHOUT CONTACT

Wiferion's technology uses resonant inductive coupling to wirelessly transfer energy across an air gap. No mechanical contacts. No plugging. No wear.

93 % system efficiency

Air gap tolerance up to 40 mm

Automatic alignment compensation

Product Family

ONE PLATFORM. EVERY POWER CLASS.

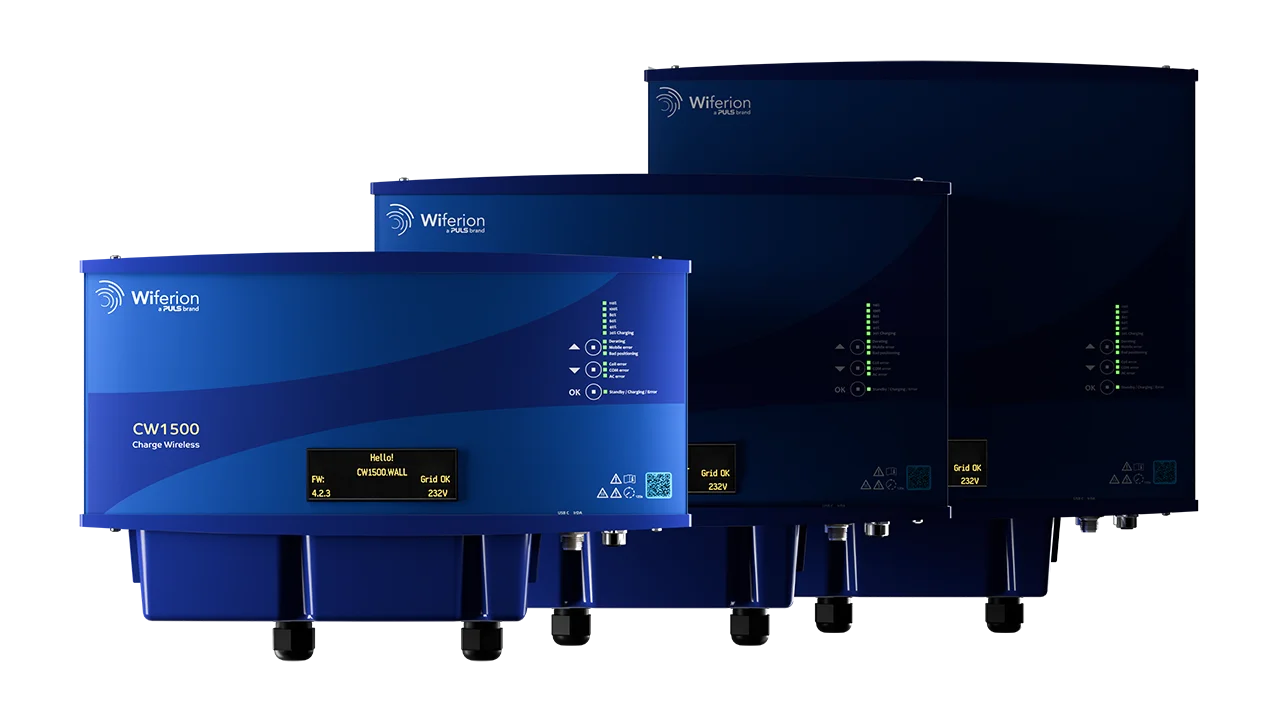

CW Charger Family

BUILT THE SAME. SCALED TO PERFORM.

IP54 rated

USB & Ethernet connectivity

Industrial protocols (Webserver, MQTT (needed for VDA 5050), Basic TCP/IP API)

Full backward compatibility

Compact WALL mount design

Plug & Play installation

CW1500.WALL

Available Now

1500 W

Efficient charging for compact vehicles. Single-phase input, ideal for lightweight AMRs.

Single-phase input

100–240 VAC

Request Early Access

Fill in the contact form below — our team will confirm your reservation and outline next steps.

CW3300.WALL

Coming Soon

3300 W

Single and three-phase input for maximum compatibility. The workhorse of intralogistics.

Single & three-phase input

200–240 VAC (Single-phase) 380–480 VAC (three-phase)

Express interest

Fill in the contact form below — our team will confirm your interest and outline next steps.

CW6000.WALL

In Development

6000 W

The future of high-power wireless charging. Built for the most demanding applications.

Three-phase input

380–480 VAC

Express early interest

Fill in the contact form below — our team will confirm your interest and outline next steps.

CW1500.WALL

Efficient wireless charging for compact vehicles with 1500 Watt nominal DC power. Single-phase input, IP54 rated, with USB and Ethernet connectivity for maximum flexibility.

Nominal Power

1500 W DC

Input Voltage

100–240 VAC

INGRESS Protection

IP54

Temperature

-25 °C to +40 °C

Accessories

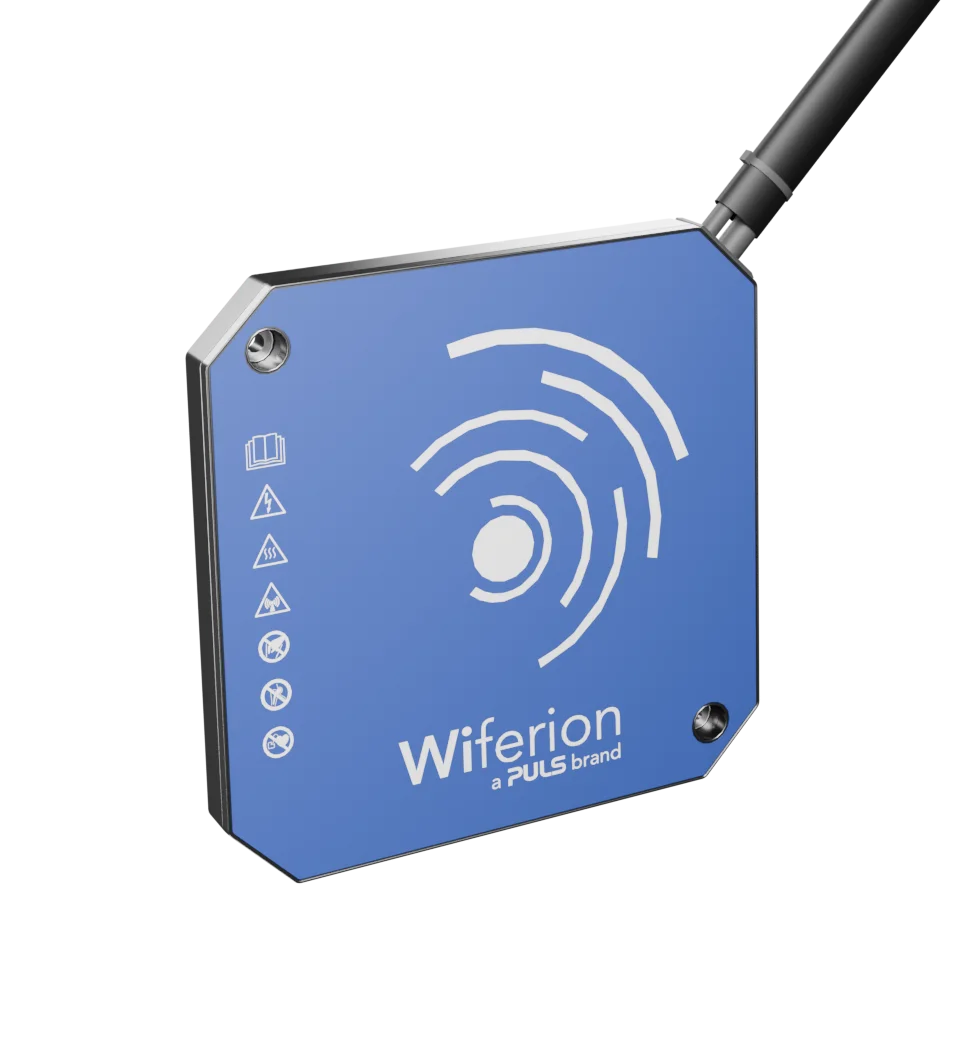

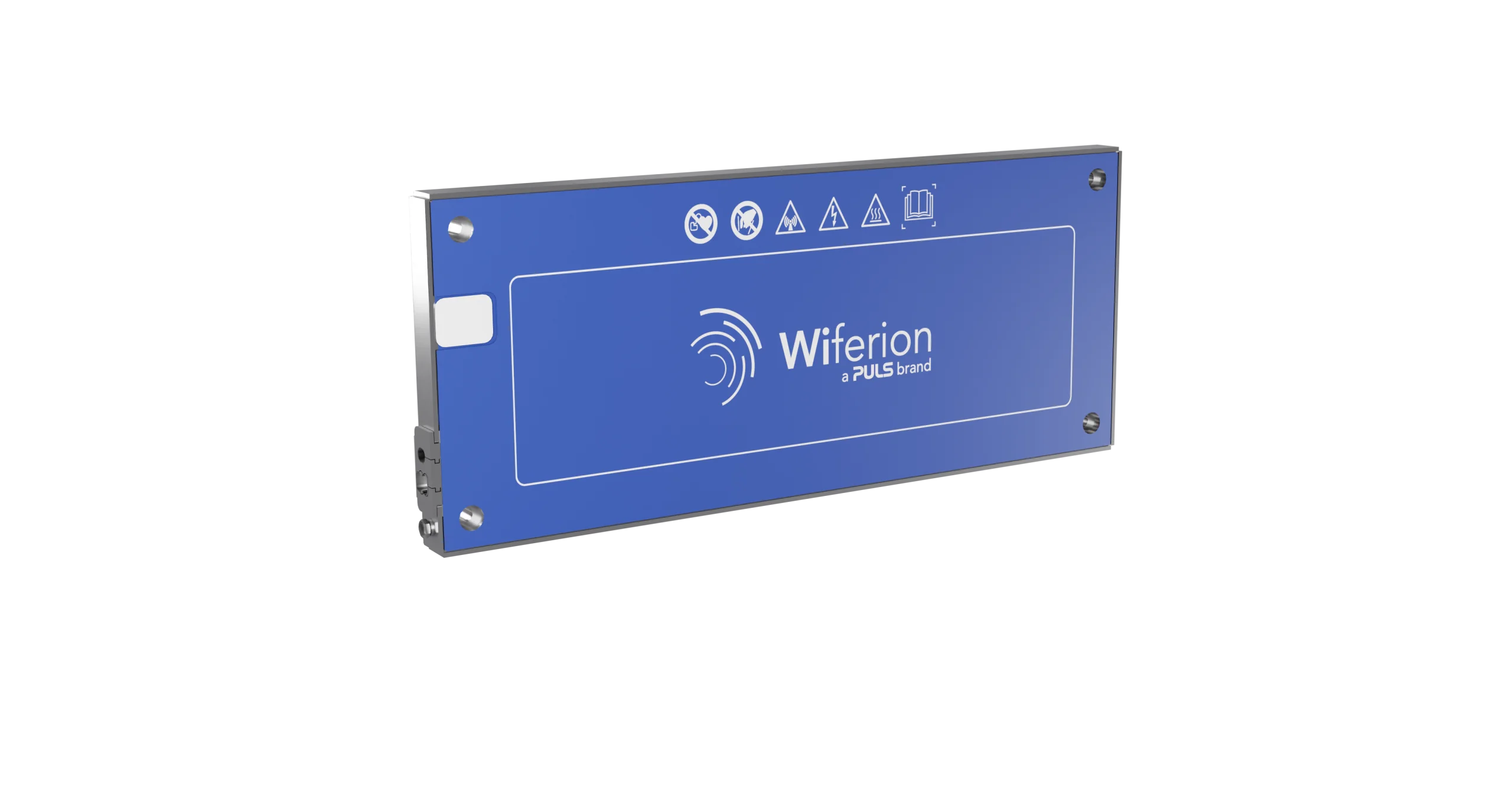

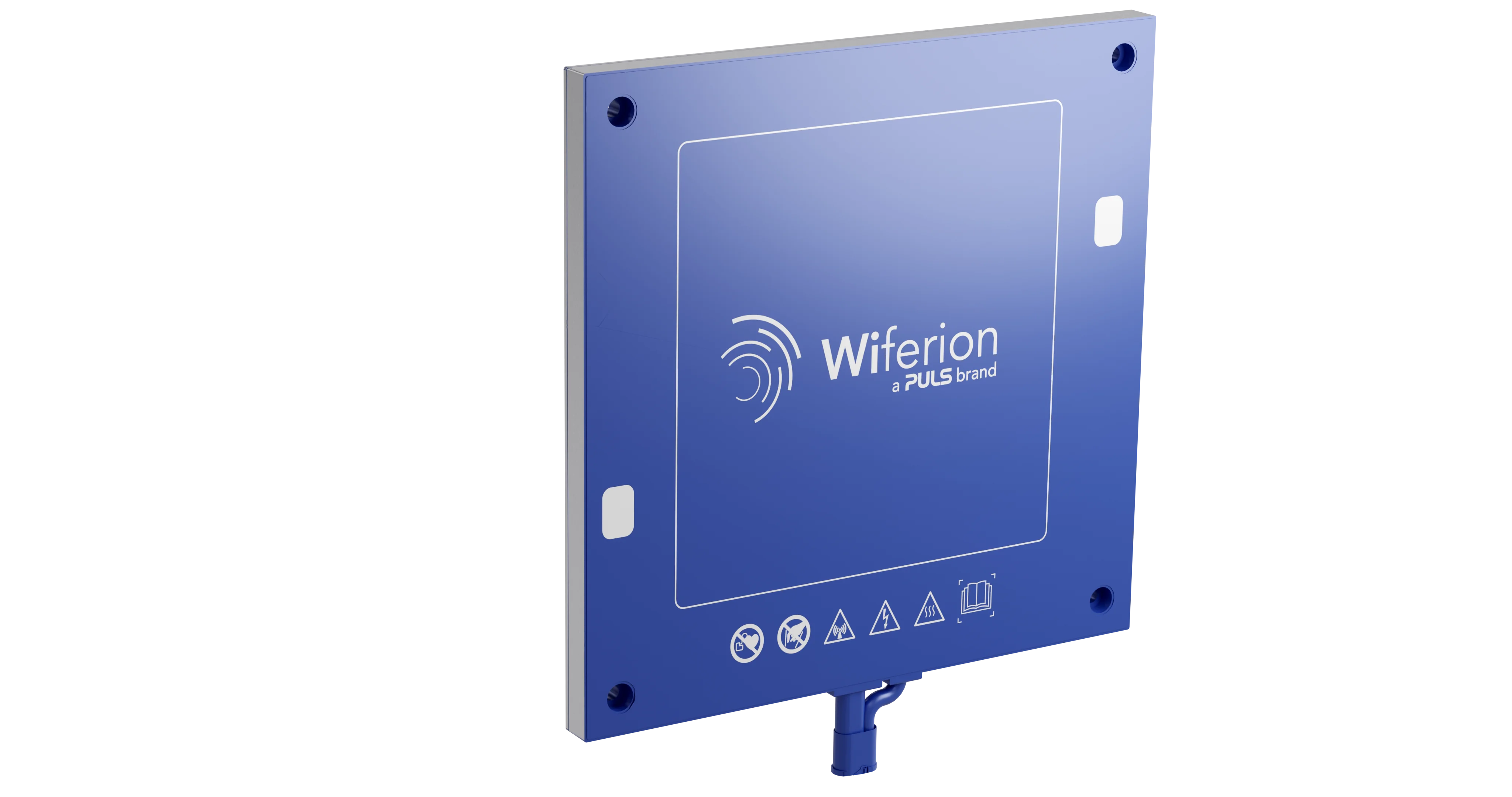

CHARGING COILS

Compatible charging coils including Stationary Coils and Sending Pads. Available in multiple form factors, fully compatible with the entire CW Charger Family.
