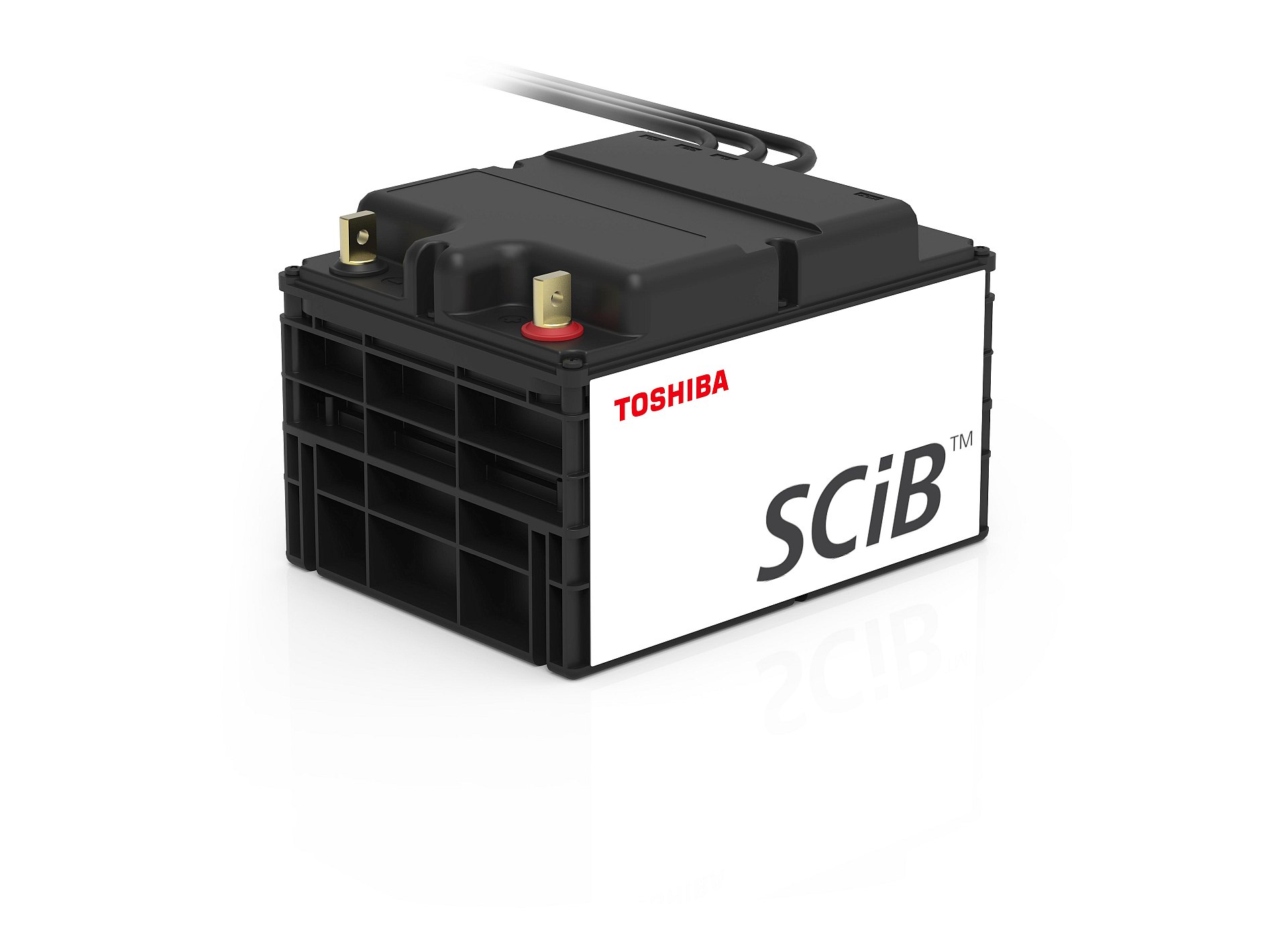

24V Lithium Battery with BMU – Toshiba SCiB™ – 22ah – LTO
22ah 24V Lithium Battery with BMU – LTO
Article-No.: 100110
1399€ Listprice
Sale
from 1100€ / Piece
(plus VAT & shipping)
• Immediately available
Delivery time 10-14 days
| Product name | SCiB™ Industrial Pack (24V) |
| Nominal capacity | 22Ah, 556Wh/44Ah, 1112Wh* |
| Nominal voltage | DC25.3V |
| Voltage range | DC16.5 to 29.7V |
| Ambient temperature | -30 to 45ºC |
| Ambient humidity | 85%RH or less (no condensation) |
| Max.charge/discharge current | 125A(200 sec) |
| Product name | Description |
| Dimensions | W247× D188 × H165mm |
| Weight | Approx. 8kg |
*Using two units of [*1] in parallel the capacity can be doubled.

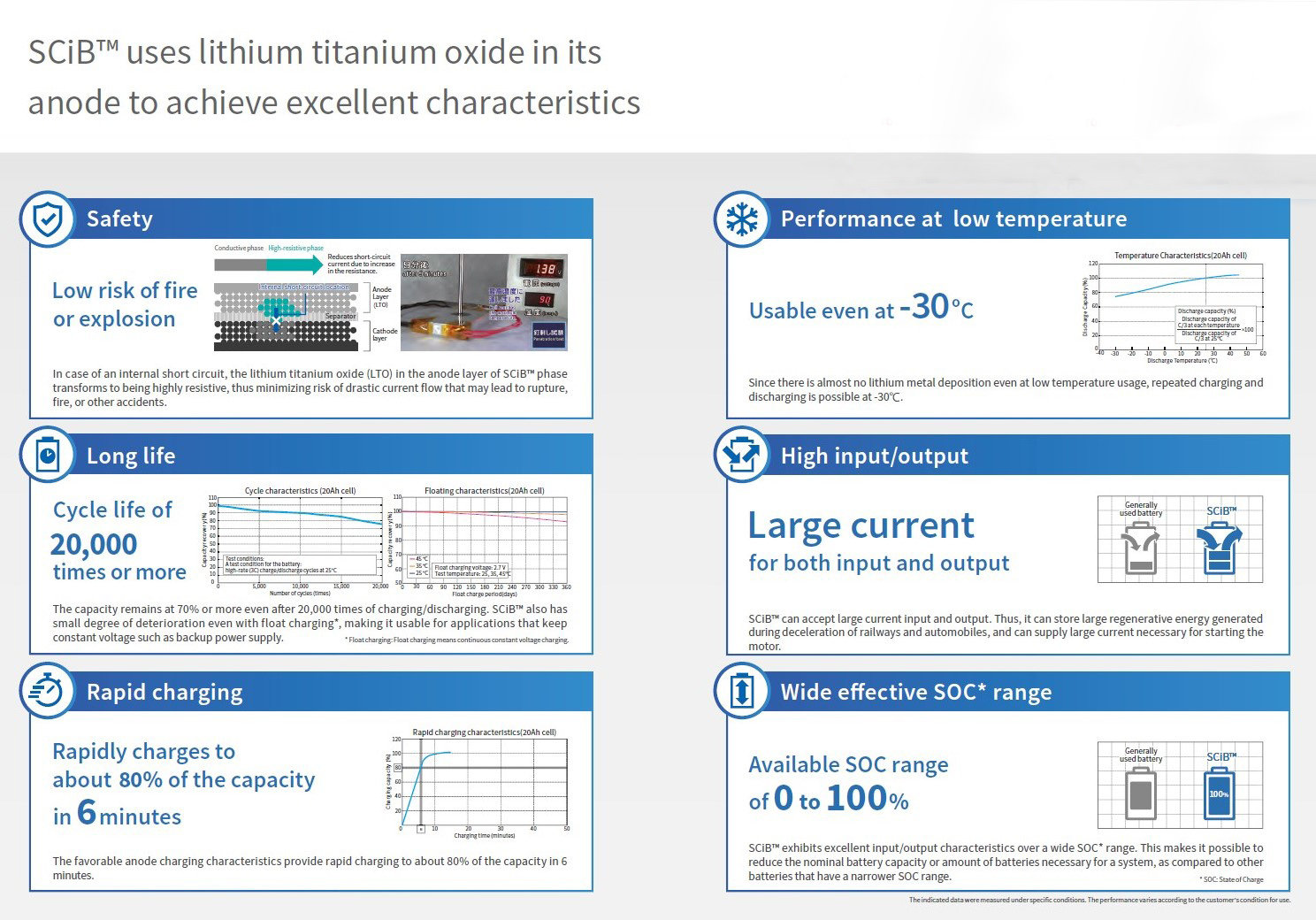

Why buy the Toshiba SCiB™ 22ah 24V Lithium Battery (LTO)?
These 24V Lithium Ion batteries (Lithium Titanate – LTO) can be charged and discharged with a high current of up to 125 A (for 200 seconds). They are suitable for automated guided vehicles (AGVs) and other small transport vehicles because there is little capacity degradation even after at least 3000 cycles. The 24-volt lithium batteries are smaller than typical lead-acid batteries and their weight is only about one-quarter that of lead-acid batteries. They can also operate at temperatures as low as -30°C. 10 years long life contributes to the reduction of total cost reduction. In addition, this battery is maintenance free! This battery does not produce hydrogen gas. The user can recharge the battery anytime and anywhere.
With conventional lithium-ion batteries, there is a risk of lithium metal buildup that can fracture the separator and cause an internal short circuit if used for an extended period of time, at very cold temperatures, or with high charging current. With SCiB™, there is no risk of lithium metal buildup.
The SCiB™ SIP series is equipped with a BMU (Battery Management System) that monitors cell voltage, current and temperature, detects faults and protects itself. You can easily handle and use as a replacement for lead-acid batteries. You can use the 24V battery with any battery charger, including inductive charging systems.
Request 24V Lithium Battery Now
Briefly fill out the contact form with the desired quantity so that we can send you your individual offer. Unfortunately, we can only deliver to corporate customers in the EU. Thank you for your understanding.
